China Carbon-Coated Aluminum Foil with Excellent Electrical Conductivity Superior Adhesion Performance and Good Coating Uniformity for Lithium-Ion Batteries wholesale

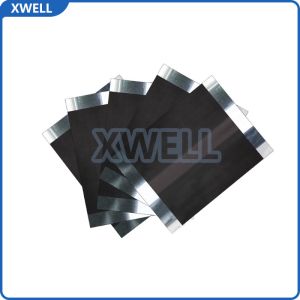

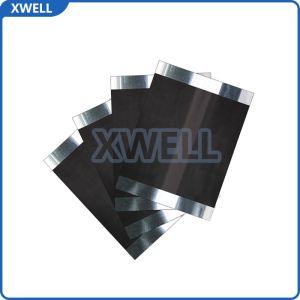

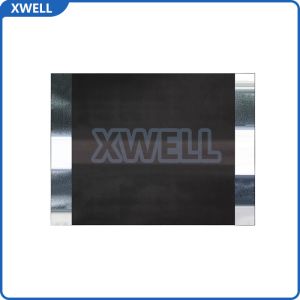

Carbon-Coated Aluminum Foil with Excellent Electrical Conductivity Superior Adhesion Performance and Good Coating Uniformity for Lithium-Ion Batteries

Name: CarbonCoated Aluminum Foil with Excellent Electrical Conductivity Superior Adhesion Performance and Good Coating Uniformity for LithiumIon Batteries
Brand: XWELL
Price: 10 USD

Ask Latest Price

Video Channel

Brand Name :XWELL

Model Number :(12+1)u200mm

Certification :CE

Place of Origin :CHINA

MOQ :100g

Price :10USD/Negotiable

Payment Terms :L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability :1 t/month

Delivery Time :5-7 days

Packaging Details :Plastic package

Tensile Strength (Mpa) :191.1

Glossy Foil Thickness (μm) :15

Substrate Width (mm) :263

Coating Width (mm) :246

Average Areal Density of Single-sided Coating (g/m²) :0.5

Elongation (%) :2.72

Thickness after Coating (μm) :17

Contact Now

Add to Cart

View Product Description

Carbon-Coated Aluminum Foil / Carbon-Clad Aluminum Foil, Coated Aluminum Foil, Current Collector for Positive Electrode of Lithium-Ion / Lithium-Sulfur Batteries

Product Advantages

The product features excellent electrical conductivity, thermal conductivity, and superior adhesion performance.

Physical Properties

It has good coating uniformity and consistency. The thickness of single-sided coating is ~1μm, and that of double-sided coating is ~2μm. The "substrate thickness", "substrate width", and "roll weight" are included in the specifications; different roll weights indicate different lengths (in meters).
The specifications of in-stock products may differ from the data on the official website. For specific details, please consult customer service before purchase.
The 1m² product is in sheet form, with a size approximately equal to that of an A4 paper. Each shipment contains about a dozen sheets (with a total effective area of 1m²).

Transportation & Storage

Packaging Material: Carton packaging
Storage Conditions: Sealed storage at room temperature
Storage Period: 2 years from the date of production
Hazard Class: Class 4 (in accordance with Hazardous Goods Classification and Operation Specifications)

Instructions & Recommendations

Carbon-coated aluminum foil is made by uniformly and finely coating well-dispersed nano-conductive graphite, carbon-coated particles, or other ultra-conductive and thermally conductive substances on aluminum foil/copper foil.

When applied as a battery current collector, it provides excellent static conductivity and collects micro-currents from active materials. This can significantly reduce the contact resistance between the positive/negative electrode materials and the current collector, improve the adhesion between them, and reduce the amount of binder used—thereby significantly enhancing various performance metrics of the battery.

When applie

Product Parameters

Tensile Strength (Mpa)	191.1
Glossy Foil Thickness (μm)	15
Substrate Width (mm)	263
Coating Width (mm)	246
Average Areal Density of Single-sided Coating (g/m²)	0.5
Elongation (%)	2.72
Thickness after Coating (μm)	17
